Provides large-area coverage and high-resolution imaging ideal for complex interventional procedures.
Supports surgeries with clear visuals, laser centering, and integrated noise reduction filters.
Includes Digital Subtraction Angiography support for vascular imaging, smart ABS control, image storage, and real-time export in DICOM format.
Independent Motion Control
Equipped with two separate handles—one each for front and rear wheels—allowing independent directional control for greater flexibility.
Unique Industry Offering
This feature is exclusive to our C-Arm series, enabling maneuverability not commonly found in conventional systems.
Precision Positioning with Ease
Greatly simplifies movement through tight spaces and facilitates precise positioning, especially critical in operation theatres and trauma settings.
Stable & Secure Linux-Based OS
The system runs on a Linux-based platform, known for its stability, speed, and resistance to crashes—ideal for uninterrupted clinical usage.
Large Internal Image Storage
Capable of storing up to 100,000 images, the inbuilt memory reduces dependency on external storage and backup systems.
Body-Part Specific APR Programming
Inbuilt APR (Anatomically Programmed Radiography) presets aligned with human anatomy allow quick, consistent parameter selection—minimizing operator error.
Minimal Maintenance Requirements
Unlike many systems that require constant software updates, our platform is maintenance-friendly and optimized for long-term operation.
Stable & Secure Linux-Based OS
The system runs on a Linux-based platform, known for its stability, speed, and resistance to crashes—ideal for uninterrupted clinical usage.
Large Internal Image Storage
Capable of storing up to 100,000 images, the inbuilt memory reduces dependency on external storage and backup systems.
Body-Part Specific APR Programming
Inbuilt APR (Anatomically Programmed Radiography) presets aligned with human anatomy allow quick, consistent parameter selection—minimizing operator error.
Minimal Maintenance Requirements
Unlike many systems that require constant software updates, our platform is maintenance-friendly and optimized for long-term operation.
Rotating Anode Tube (6 kW)
Designed for heavy-duty use, the rotating anode efficiently dissipates heat, allowing prolonged imaging sessions.
Stationary Anode Tube (3.5 kW)
Ideal for moderate use scenarios, offering stable performance for general surgical and diagnostic applications.
All tube configurations come with thermal cut-off mechanisms to prevent overheating and ensure longevity.
Tubes are enclosed in durable fiber-reinforced body covers, offering robust protection and easy handling.
Rotating Anode Tube (6 kW)
Designed for heavy-duty use, the rotating anode efficiently dissipates heat, allowing prolonged imaging sessions.
Stationary Anode Tube (3.5 kW)
Ideal for moderate use scenarios, offering stable performance for general surgical and diagnostic applications.
All tube configurations come with thermal cut-off mechanisms to prevent overheating and ensure longevity.
Tubes are enclosed in durable fiber-reinforced body covers, offering robust protection and easy handling.

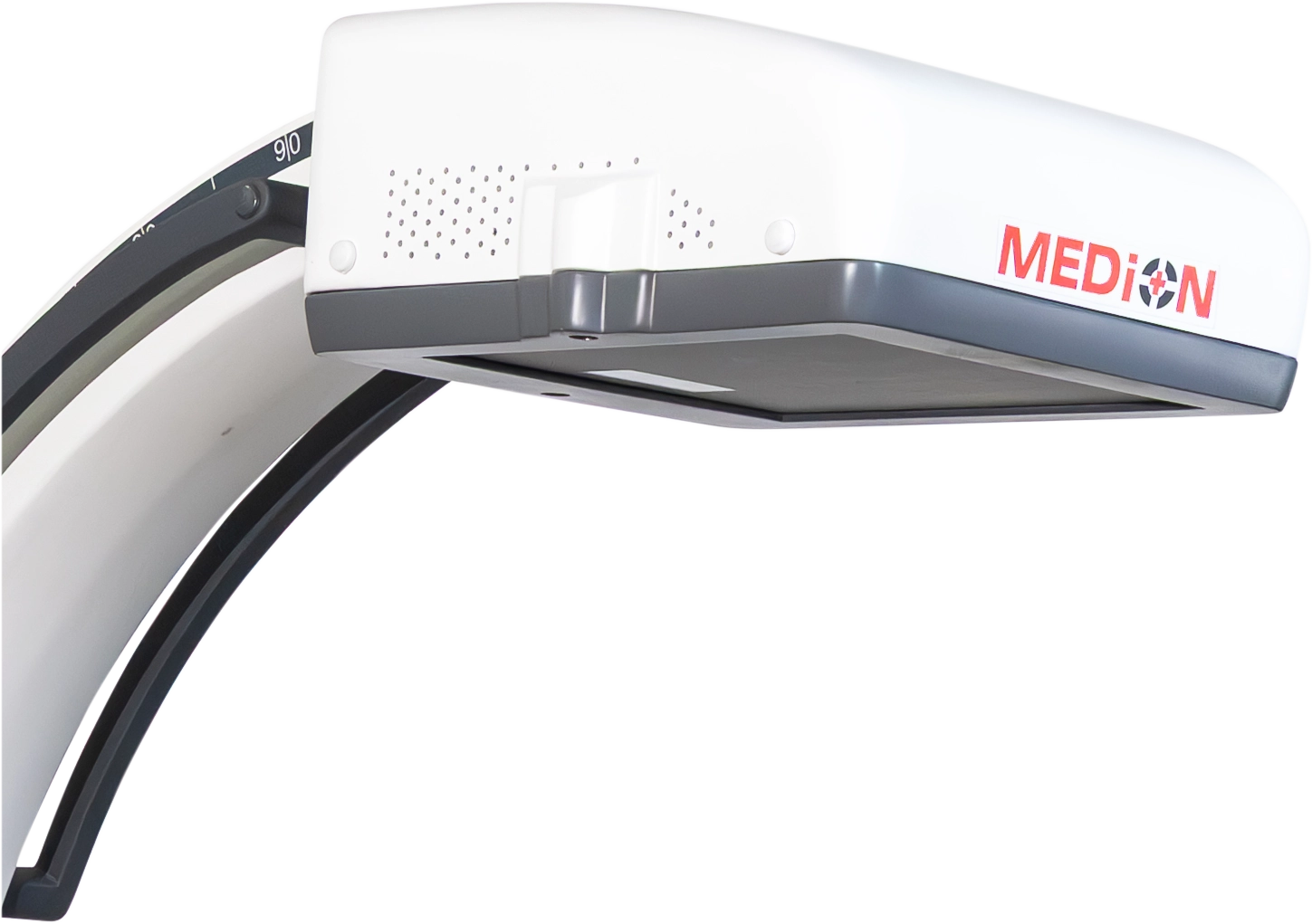

Flat Panel Detector (FPD) System:
23 x 23 cm detector with 1536 x 1536 pixel resolution
Pixel Pitch: 154 µm, Spatial Resolution: 3.2 lp/mm
Offers low-dose, high-clarity imaging for safe and reliable intraoperative diagnostics
Advanced Imaging with Angiography:
Supports Digital Subtraction Angiography
Enables precise imaging for neuro, cardiac, and vascular applications
Full digital chain with dynamic noise filtering and split-screen imaging
Flat Panel Detector (FPD) System:
23 x 23 cm detector with 1536 x 1536 pixel resolution
Pixel Pitch: 154 µm, Spatial Resolution: 3.2 lp/mm
Offers low-dose, high-clarity imaging for safe and reliable intraoperative diagnostics
Advanced Imaging with Angiography:
Supports Digital Subtraction Angiography
Enables precise imaging for neuro, cardiac, and vascular applications
Full digital chain with dynamic noise filtering and split-screen imaging

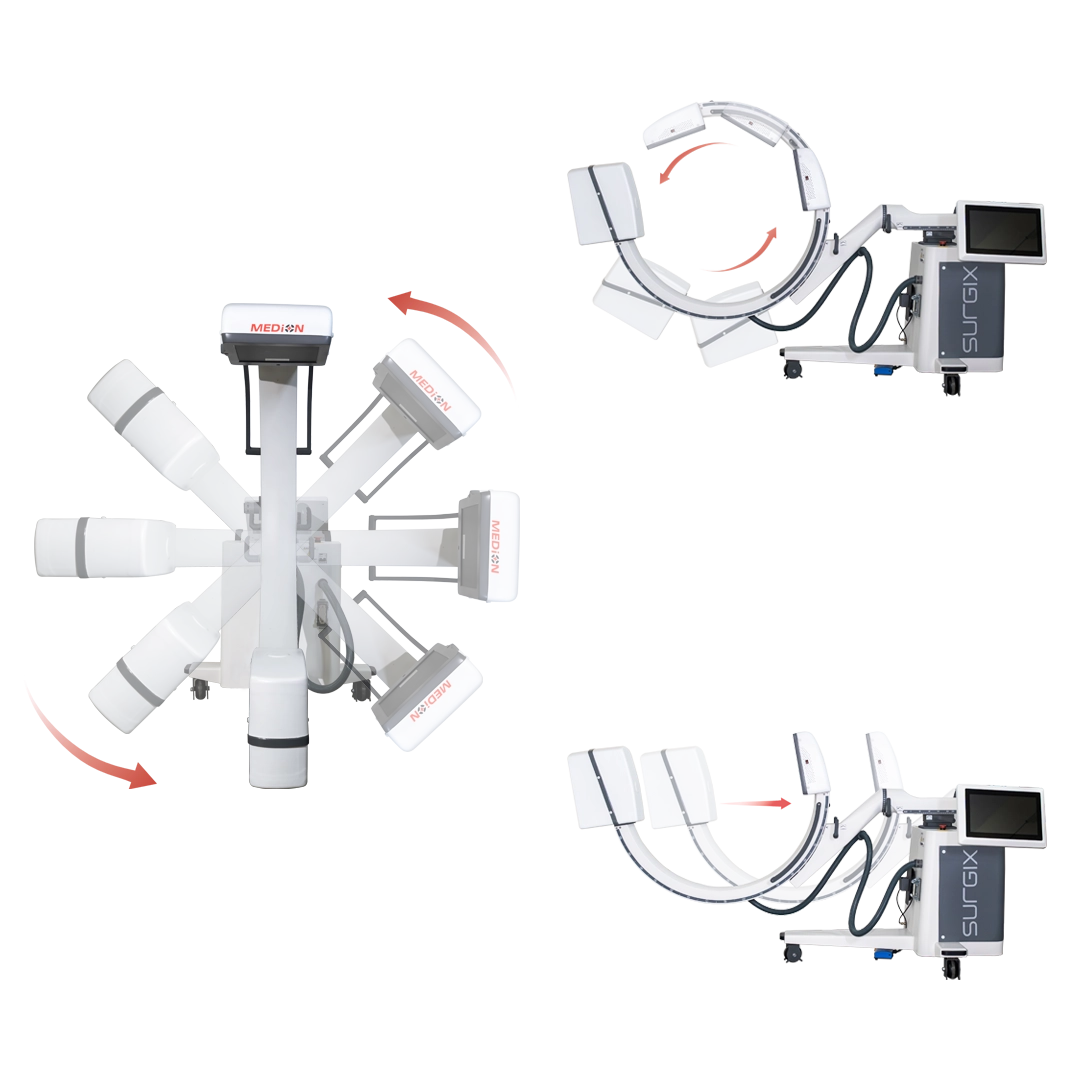

Orbital Rotation: Enables smooth orbital movement from -30° to +90°, allowing angled imaging without repositioning the patient.
Vertical & Horizontal Travel: Supports up/down and in/out movement of the C-arm, accommodating different patient positions and surgical setups.
Lateral Swing (Wig-Wag) & Axial Rotation: Allows the C-arm to swing sideways and rotate around its vertical axis, offering flexibility for oblique and lateral imaging angles.
Swivel & Panning Motion: Facilitates minor horizontal and vertical adjustments, helping technicians fine-tune positioning during procedures.
Orbital Rotation: Enables smooth orbital movement from -30° to +90°, allowing angled imaging without repositioning the patient.
Vertical & Horizontal Travel: Supports up/down and in/out movement of the C-arm, accommodating different patient positions and surgical setups.
Lateral Swing (Wig-Wag) & Axial Rotation: Allows the C-arm to swing sideways and rotate around its vertical axis, offering flexibility for oblique and lateral imaging angles.
Swivel & Panning Motion: Facilitates minor horizontal and vertical adjustments, helping technicians fine-tune positioning during procedures.

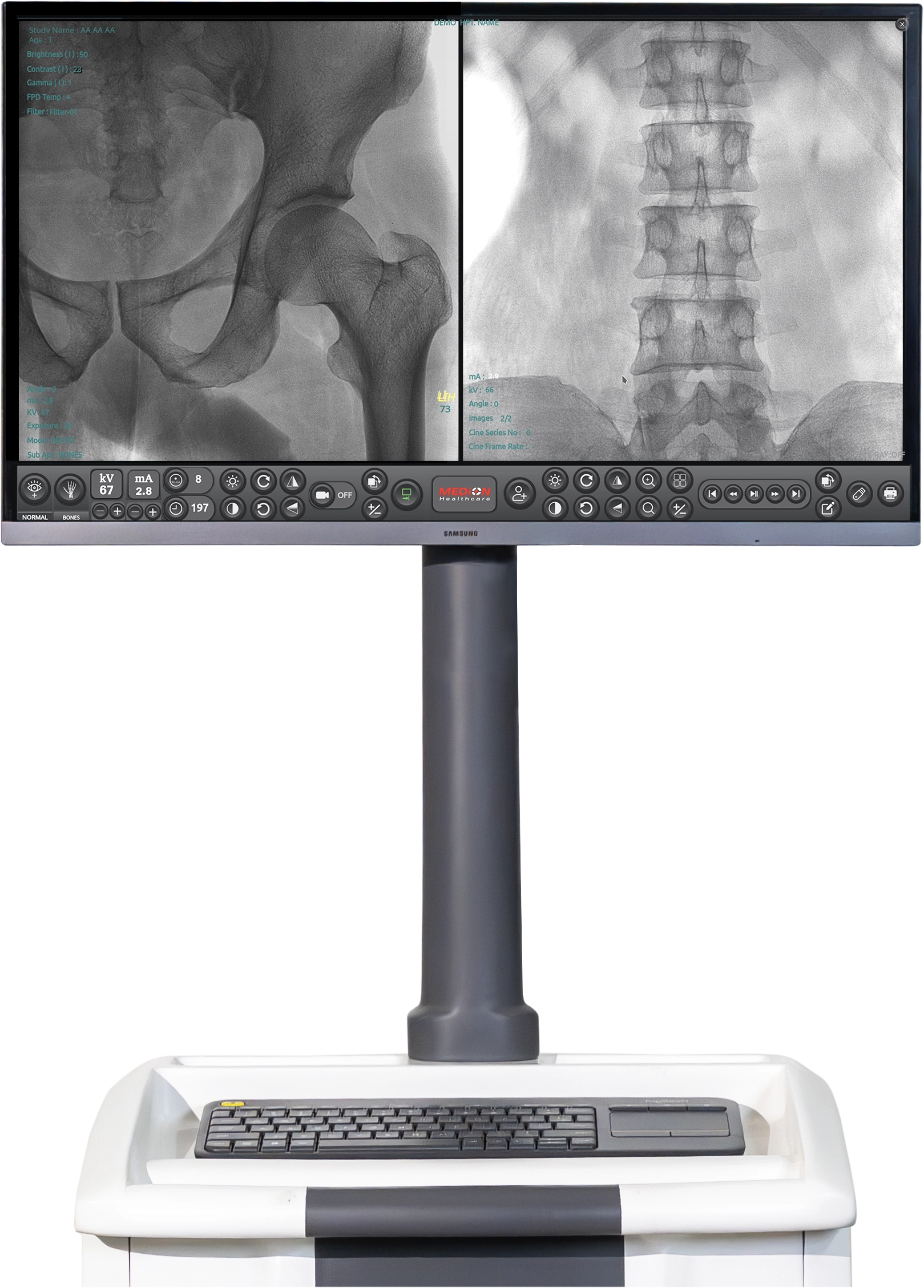

Display Options
Choose between a single 27-inch high-definition medical-grade monitor with split-screen functionality
Or dual 19-inch monitors for comparative imaging

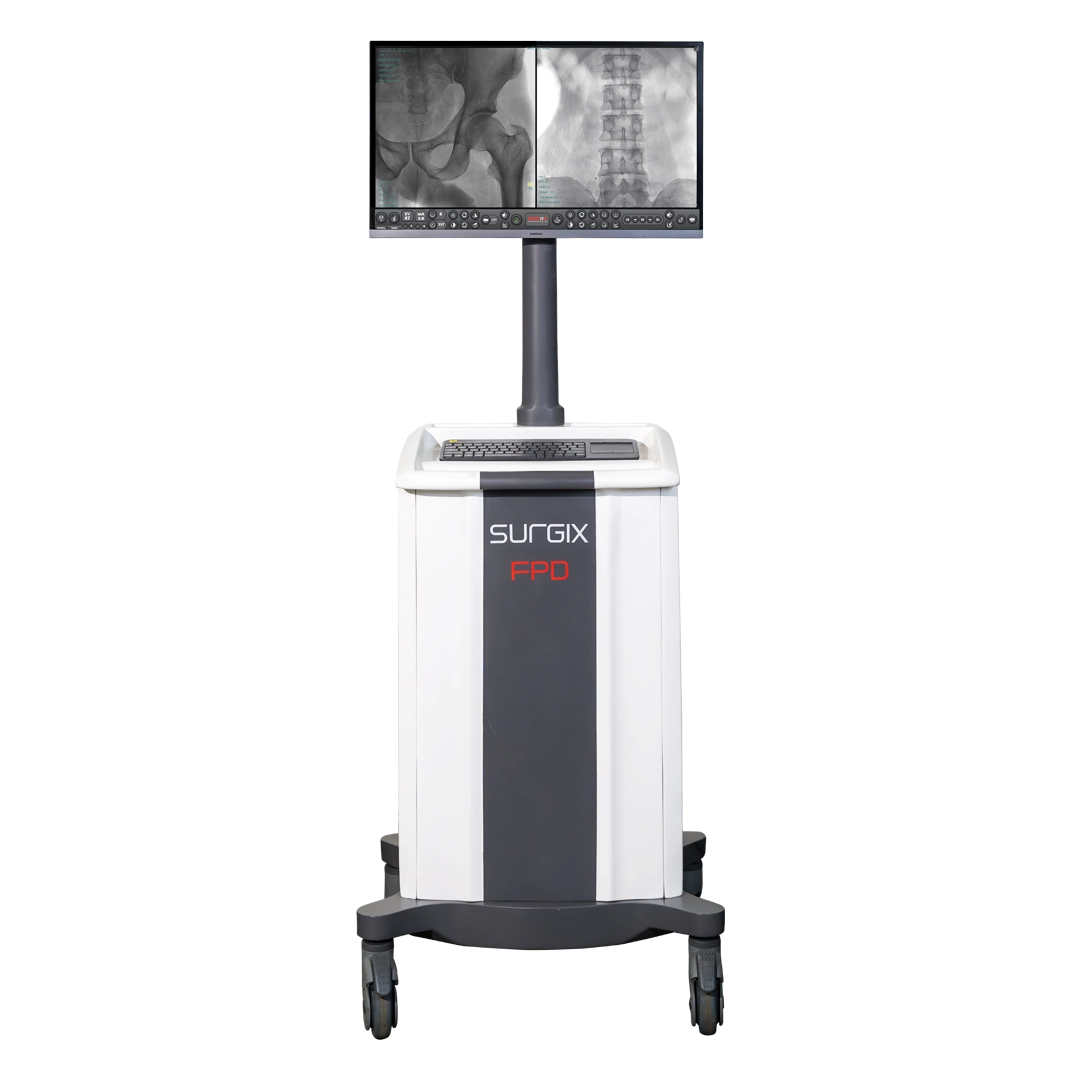

Mobile Trolley Mounting
Monitors can be securely mounted on a mobile trolley, ensuring flexibility of movement and optimal viewing angles in the OR or diagnostic rooms.
Display Options
Choose between a single 27-inch high-definition medical-grade monitor with split-screen functionality
Or dual 19-inch monitors for comparative imaging
Mobile Trolley Mounting
Monitors can be securely mounted on a mobile trolley, ensuring flexibility of movement and optimal viewing angles in the OR or diagnostic rooms.
Surgix HD-HQ-FPD
Power Output: 3.5 kW
X-ray Tube: Stationary anode
Imaging: Triple-field 9” image intensifier”
Surgix R-HD-HQ-FPD
Power Output: 6 kW
X-ray Tube: Rotating anode
Imaging: Triple-field 9” image intensifier
Surgix R-HD-HQ-Angio-FPD
Power Output: 6 kW
X-ray Tube: Rotating anode
Imaging: Flat Panel Detector with DSA (Digital Subtraction Angiography) for high-end vascular and contrast imaging procedures

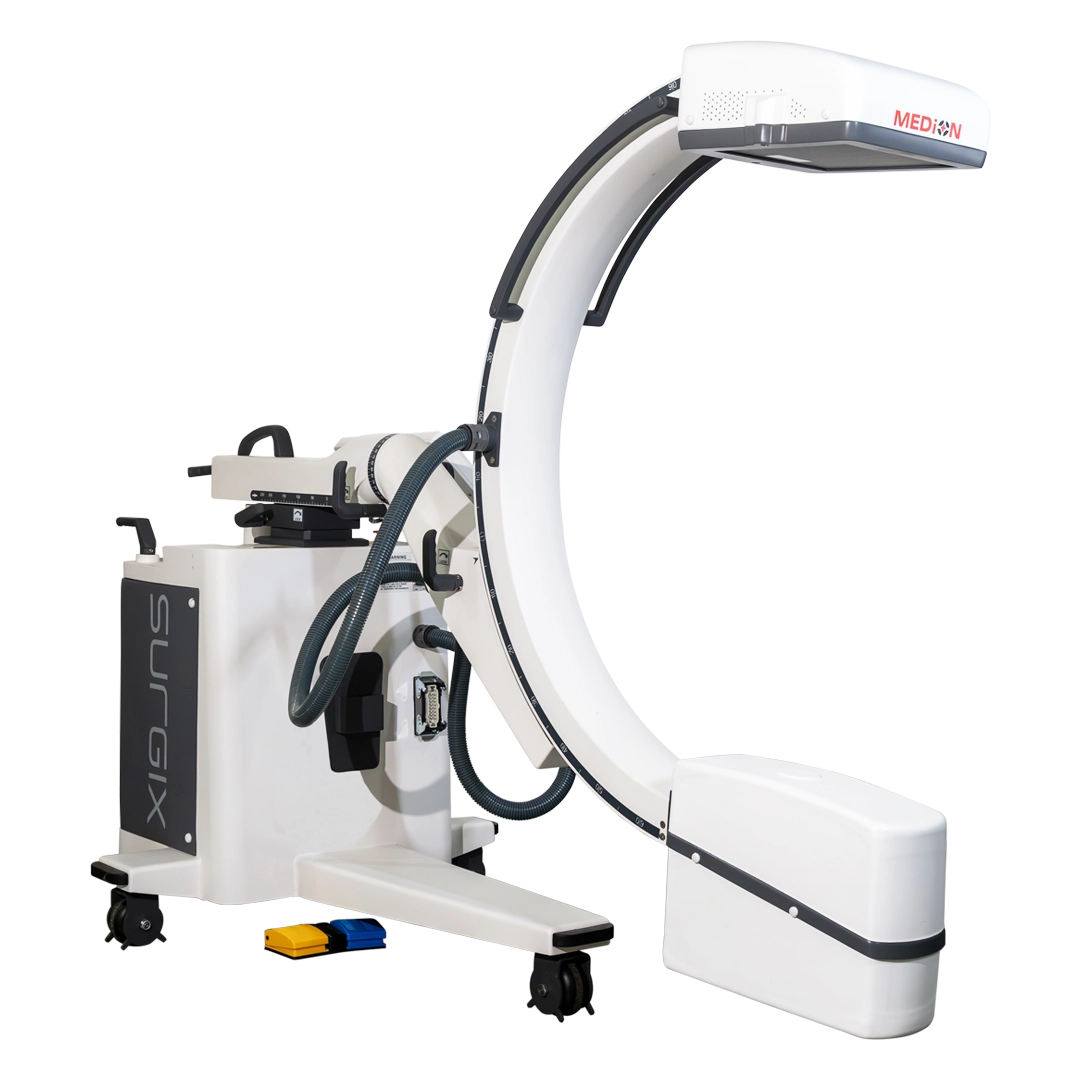

The Surgix HD FPD C-Arm delivers advanced fluoroscopy with high-quality FPD imaging, a 32″ HD screen, and robust storage for seamless surgical and hospital imaging. Proudly Made-in-India, it provides precise, reliable, and innovative medical technology to enhance operative accuracy, imaging efficiency, and patient care across hospitals and clinics.
